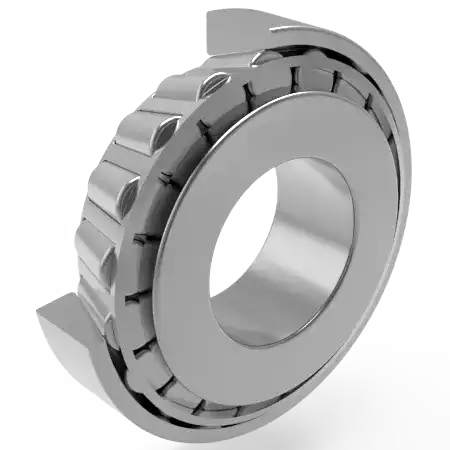

Single row tapered roller bearing (Inch series) bore 12.000-100.012mm

Single row tapered roller bearing (Inch series) bore 12.000-100.012mm

Single-row tapered roller bearings

Single row tapered roller bearing (Inch series) bore 12.000-100.012mm

Back to list

Dimensions（mm)							Rated load(N)		Rated load{kgf}		Rated speed (min)^-1		Bearing Designation		Install Dimensions (mm)						Point of action Location(mm)	Constant	Axial load Coef.		Weight（kg）（reference）
d	D	T	B	C	inner ringγ (Minimum)	outer ringγ (Minimum)	C_r	C_or	C_r	C_or	Grease lubrication	Oil lubrication	inner ring	outer ring	d_a	d_b	d_a	d_b	inner ringγ_a（Maximum）	outer ringγ_a（Maximum）	A	e	Y₁	Y₀	inner ring	outer ring
100.012	161.925	39.688	36.116	29.73	3.5	3.3	191	310	19 500	31 500	—	—	52393	52638	119	108	143	155	3.5	3.3	39.2	0.47	1.3	0.69	1.81	1.11
100.012	157.162	36.512	36.116	26.195	3.5	3.3	191	310	19 500	31 500	2 000	2 800	52393	52618	116	109	142	152	3.5	3.3	36.1	0.47	1.3	0.69	1.81	0.702
100	212.725	66.675	66.675	53.975	3.5	3.3	570	810	58 000	82 500	—	—	#HH224334	HH224310	133	118	191	206	3.5	3.3	47.3	0.33	1.8	1	8.34	3.06
100	190.5	57.15	57.531	44.45	6	3.3	355	500	36 000	51 000	—	—	863X	854	127	111	168	181	6	3.3	41.8	0.33	1.8	0.99	4.26	2.55
100	180.975	47.625	48.006	38.1	3.5	3.3	258	375	26 300	38 500	—	—	783	772	123	111	160	172	3.5	3.3	39.1	0.39	1.6	0.86	2.97	1.99
100	160	41	40	32	3	2.5	239	380	24 400	38 500	2 000	2 800	▲JHM 720249	▲JHM 720210	117	109	143	154	3	2.5	38.2	0.47	1.3	0.7	2.09	0.974
100	155	36	35	28	3	2.5	191	325	19 500	33 000	2 000	2 800	▲JM 720249	▲JM 720210	115	109	140	149	3	2.5	36.8	0.47	1.3	0.7	1.68	0.772
100	150	32	30	26	2.3	2.3	146	235	14 900	24 000	2 200	3 000	▲JLM 820048	▲JLM 820012	111	107	135	144	2.3	2.3	36.8	0.5	1.2	0.66	1.27	0.616
99.982	190.5	57.15	57.531	46.038	6.4	3.3	390000	520000	39500	53500	1900	2600	HH221447	HH221410	126	114	171	179	6.4	3.3	42.3	0.33	1.8	0.99	4.68	2.24
98.425	190.5	57.15	57.531	46.038	3.5	3.3	390000	520000	39500	53500	1900	2600	HH221442	HH221410	119	113	171	179	3.5	3.3	42.3	0.33	1.8	0.99	4.81	2.24
98.425	190.5	57.15	57.531	44.45	3.5	3.3	355000	500000	36000	51000	1900	2600	866	854	118	111	170	174	3.5	3.3	41.8	0.33	1.8	0.99	4.38	2.55
98.425	180.975	47.625	48.006	38.1	3.5	3.3	258000	375000	26300	38500	2000	2600	779	772	116	110	161	168	3.5	3.3	39.1	0.39	1.6	0.86	3.06	1.99
98.425	168.275	41.275	41.275	30.162	3.5	3.3	223000	345000	22700	35000	2000	2800	685	672	116	109	149	160	3.5	3.3	38.3	0.47	1.3	0.7	2.32	1.24
98.425	161.925	36.512	36.116	26.195	3.5	3.3	191000	310000	19500	31500	2000	2800	52387	52637	114	108	144	154	3.5	3.3	36.1	0.47	1.3	0.69	1.89	0.942
96.838	149.225	31.75	28.971	24.606	3.5	3.3	140000	218000	14300	22300	2200	3000	42381	42587	111	105	135	143	3.5	3.3	34.9	0.49	1.2	0.67	1.13	0.711
96.838	148.43	28.575	28.971	21.433	3.5	3	140000	218000	14300	22300	2200	3000	42381	42584	110	104	134	142	3.5	3	31.8	0.49	1.2	0.67	1.13	0.553
95.25	190.5	57.15	57.531	46.038	8	3.3	390000	520000	39500	53500	1900	2600	HH221440	HH221410	125	110	171	179	8	3.3	42.3	0.33	1.8	0.99	5	2.24
95.25	190.5	57.15	57.531	44.45	8	3.3	355000	500000	36000	51000	1900	2600	864	854	123	108	170	174	8	3.3	41.8	0.33	1.8	0.99	4.57	2.55
95.25	180.975	47.625	48.006	38.1	3.5	3.3	258000	375000	26300	38500	2000	2600	776	772	114	107	161	168	3.5	3.3	39.1	0.39	1.6	0.86	3.25	1.99
95.25	171.45	47.625	48.26	38.1	3.5	3.3	282000	415000	28800	42500	2000	2800	77375	77675	117	105	152	159	3.5	3.3	37.8	0.37	1.6	0.9	2.91	1.67
