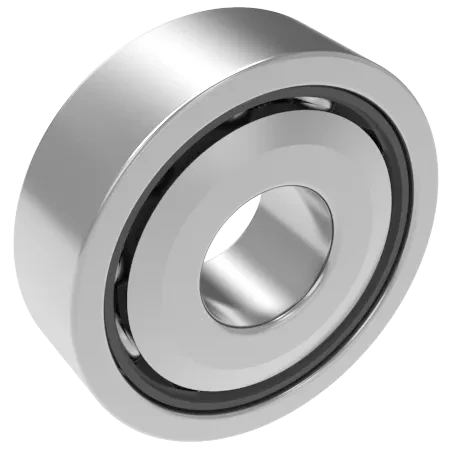

Ball screw support bearing for electric injection molding machine bore 15-120mm

Dimensions (mm)					Dimensions (mm)				Recommended Grease	Contact Angle (°)	Rated Speed min^-1	Bearing Designation	Rated Dynamic Load C_a			Limiting Axial Load
d	D	B	γ (Minimum)	γ₁ (Minimum)	d₁	D₂	d₁	D₂	Filling Quantity (cc)	Contact Angle (°)	Grease Lubrication	Bearing Designation	Single Row Load DF, DB (N)	Double Row Load DT, DF, DBD DFF, DBB (N)	Three Row Load DTD, DFT, DBT (N)	Single Row Load DF, DB (N)	Double Row Load DT, DF, DBD DFF, DBB (N)	Three Row Load DTD, DFT, DBT (N)
120	260	55	3	1.1	153	189.3	190.7	223.5	170	55	1500	120TAC03CMC	430000	700000	930000	295000	590000	885000
100	215	47	3	1.1	122.5	156.9	158.1	188.1	120	55	1900	100TAC03CMC	365000	595000	795000	231000	460000	690000
80	170	39	2.1	1.1	94	118.5	131.5	152.5	82	50	2400	80TAC03AM	274000	445000	590000	238000	475000	715000
60	130	31	2.1	1.1	72.1	89.8	100.2	119.4	54	50	3100	60TAC03AT85	196000	320000	425000	152000	305000	455000
55	120	29	2	1	67.1	82.7	92.3	110.1	32	50	3400	55TAC03AT85	171000	278000	370000	133000	266000	400000
50	110	27	2	1	60.3	75.6	84.5	100.9	27	50	3700	50TAC03AT85	150000	243000	325000	116000	232000	350000
45	110	27	2	1	60.3	75.6	84.5	100.9	27	50	3700	TAC45-2T85	150000	243000	325000	116000	232000	350000
45	100	25	1.5	1	55.8	68.6	76.4	91	19	50	4100	45TAC03AT85	120000	195000	259000	91500	183000	274000
40	90	23	1.5	1	49.7	61.4	68.6	81.9	15	50	4600	40TAC03AT85	102000	166000	220000	75500	151000	226000
35	90	23	1.5	1	49.7	61.4	68.6	81.9	15	50	4600	TAC35-2T85	102000	166000	220000	75500	151000	226000
25	52	15	1	0.6	30.5	36.6	40.4	47.4	3	50	7700	25TAC02AT85	33500	54500	72000	22700	45500	68000
15	35	11	0.6	0.3	19.5	23.5	26.5	31.9	0.98	50	12000	15TAC02AT85	18800	30500	40500	11500	22900	34500
