Take-up block - UCT3

Take-up block - UCT3

Pillow Block Bearing

Take-up block - UCT3

Back to list

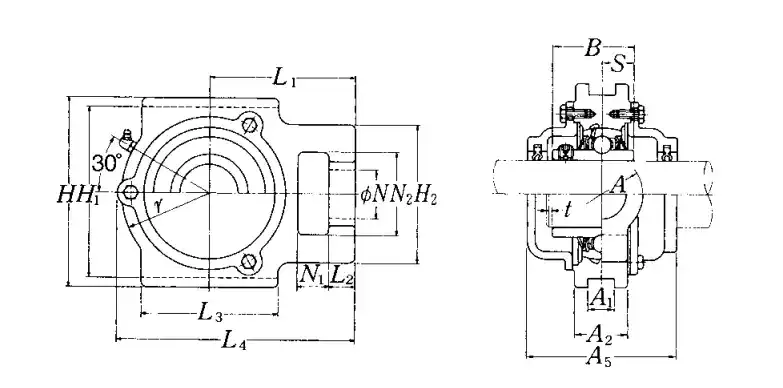

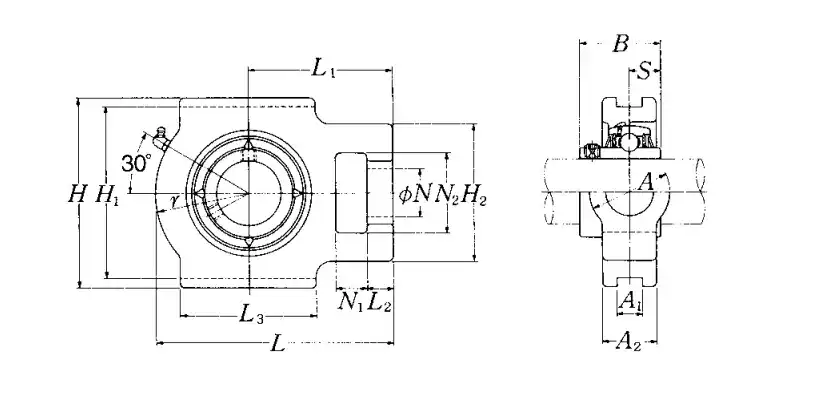

Shaft Diameter (mm)	Unit Number	Nominal Dimensions (mm)																			Bearing Number	Housing Number	Unit Number of Cast Dust Cover Type	Unit Weight (kg)
Shaft Diameter (mm)	Unit Number	N1	L2	H2	N2	N	L3	A1	H1	h	L	A2	A	R	L1	B	S	T	L4	A5	Bearing Number	Housing Number	Unit Number of Cast Dust Cover Type	UCT	C(CM)
140	UCT328D1	70	52	230	160	80	255	50	380	415	515	100	155	200	315	145	59	6	519	235	UC328D1	T328D1	C(CM)-UCT328D1	84	111
130	UCT326D1	65	47	75	240	220	150	135	180	285	100	150	385	465	50	350	476	225	6	54	UC326D1	T326D1	C(CM)-UCT326D1	69	92
120	UCT324D1	60	44	210	140	70	230	320	45	355	432	90	140	165	267	126	51	5	215	439	UC324D1	T324D1	C(CM)-UCT324D1	55	71
110	UCT322D1	52	40	65	215	185	125	150	235	80	130	320	385	38	285	5	395	200	117	46	UC322D1	T322D1	C(CM)-UCT322D1	40	55
105	UCT321D1	48	34	115	175	59	35	200	290	260	75	347	135	120	112	212	44	5	195	359	UC321D1	T321D1	C(CM)-UCT321D1	32	43
100	UCT320D1	48	34	200	35	59	175	115	210	108	120	135	75	345	260	290	350	190	5	42	UC320D1	T320D1	C(CM)-UCT320D1	30	38
95	UCT319D1	46	33	106	165	57	180	35	240	270	322	110	72	103	125	197	41	5	180	327	UC319D1	T319D1	C(CM)-UCT319D1	24	31
90	UCT318D1	46	32	32	57	160	106	192	96	120	110	312	66	255	228	175	317	170	5	40	UC318D1	T318D1	C(CM)-UCT318D1	21	27
85	UCT317D1	42	32	98	152	53	32	170	240	214	64	298	102	115	96	183	40	5	170	303	UC317D1	T317D1	C(CM)-UCT317D1	19	25
80	UCT316D1	42	30	53	150	30	98	86	108	102	282	60	204	230	160	155	287	4	34	174	UC316D1	T316D1	C(CM)-UCT316D1	16	20
75	UCT315D1	36	27	132	85	46	150	26	192	216	262	55	90	102	160	82	32	4	268	150	UC315D1	T315D1	C(CM)-UCT315D1	13	17
70	UCT314D1	36	27	46	140	130	85	78	97	155	52	90	202	252	26	180	258	140	4	33	UC314D1	T314D1	C(CM)-UCT314D1	11	14
65	UCT313D1	32	27	116	70	43	134	170	26	190	238	50	80	92	146	75	30	4	140	244	UC313D1	T313D1	C(CM)-UCT313D1	9.4	12
60	UCT312D1	31	25	41	123	113	71	85	135	46	71	178	220	22	160	4	227	135	71	26	UC312D1	T312D1	C(CM)-UCT312D1	7.6	10
55	UCT311D1	29	23	66	105	39	22	115	163	150	44	207	80	66	66	127	25	4	125	211	UC311D1	T311D1	C(CM)-UCT311D1	6.3	8.4
50	UCT310D1	27	22	106	20	37	98	61	118	61	61	74	40	192	140	151	197	120	3	22	UC310D1	T310D1	C(CM)-UCT310D1	5	7
45	UCT309D1	24	20	55	90	34	97	18	125	138	178	55	38	57	68	110	22	3	110	181	UC309D1	T309D1	C(CM)-UCT309D1	4	5.4
40	UCT308D1	22	19	18	32	83	50	100	52	62	50	162	34	124	112	89	164	105	3	19	UC308D1	T308D1	C(CM)-UCT308D1	3	4.2
35	UCT307D1	20	17	45	75	30	16	80	111	100	32	150	45	56	48	94	19	3	95	152	UC307D1	T307D1	C(CM)-UCT307D1	2.3	3.2
30	UCT306D1	18	16	28	70	16	41	43	52	41	137	28	90	100	74	85	139	2	17	85	UC306D1	T306D1	C(CM)-UCT306D1	1.8	2.4
