Take-up block - UCT2

The UCT2 external spherical bearing unit with a slide block housing features a slide-way design that allows for flexible fine-tuning of the mounting position, meeting the alignment adjustment requirements of shaft systems. The bearing offers high precision, smooth operation and effective dust sealing, whilst the housing provides stable load-bearing capacity and excellent adaptability. It is widely used in transmission support components requiring fine-tuning of position, such as in conveying machinery, textile equipment and light industrial automation equipment.

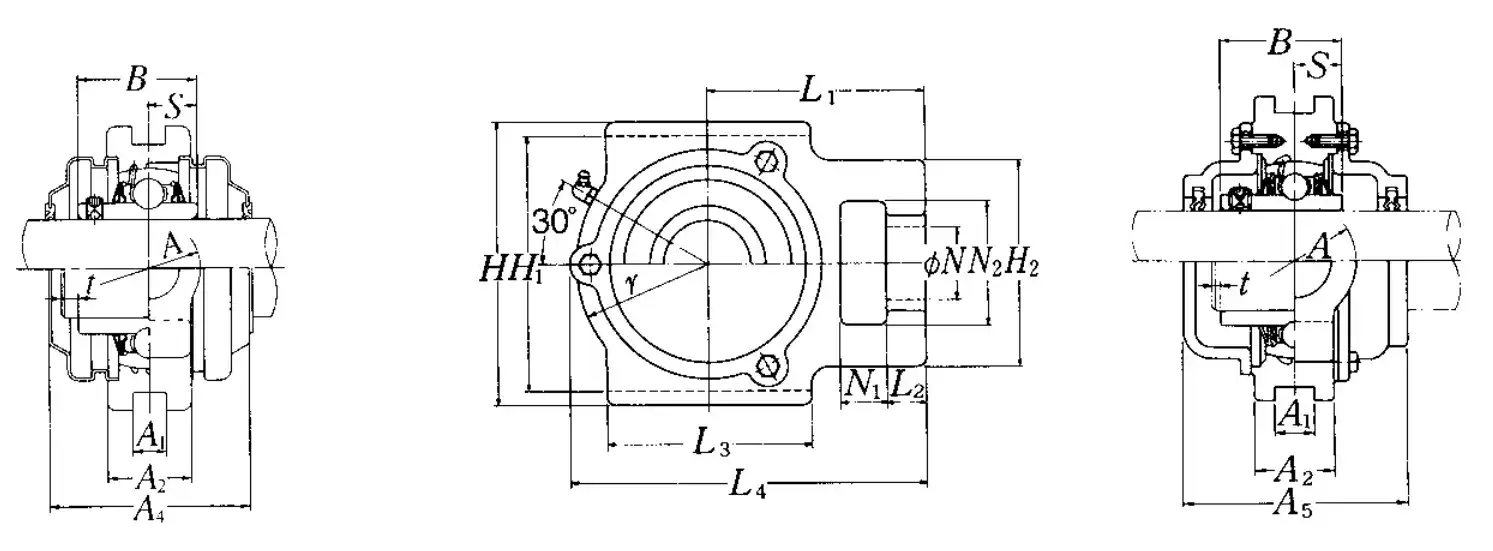

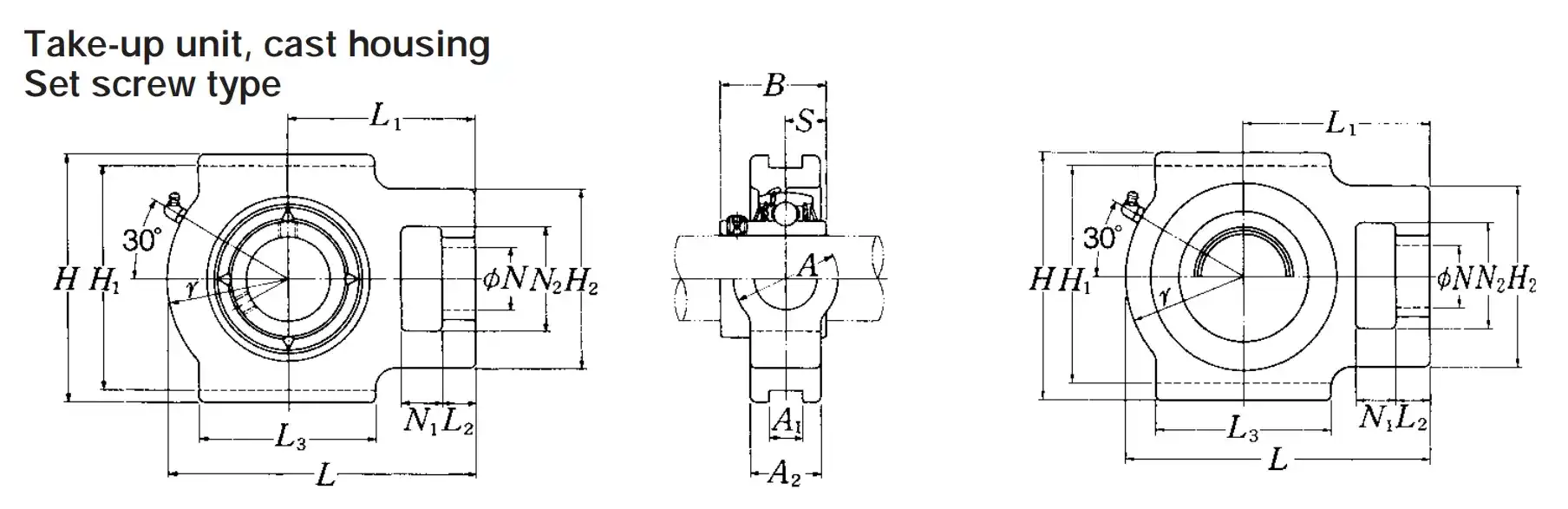

Shaft Diameter (mm)	Unit Number	Nominal Dimensions (mm)																				Bearing Number	Housing Number	Unit Number (Pressed Steel Dust Cover)	Unit Number (Cast Dust Cover)	Unit Weight (kg)
Shaft Diameter (mm)	Unit Number	N1	L2	H2	N2	N	L3	A1	H1	h	L	A2	A	R	L1	B	S	T	A4	L4	A5	Bearing Number	Housing Number	Unit Number (Pressed Steel Dust Cover)	Unit Number (Cast Dust Cover)	UCT	Z(ZM)	C(CM)
50	UCT210D1	19	18	83	49	29	86	16	102	117	151	37	49	59	92	51.6	19	3	76	152	100	UC210D1	T210D1	Z(ZM)-UCT210D1	C(CM)-UCT210D1	2.6	2.7	3.6
45	UCT209D1	19	18	83	49	29	83	16	102	117	145	35	49	57	88	49.2	19	3	69	145.5	95	UC209D1	T209D1	Z(ZM)-UCT209D1	C(CM)-UCT209D1	2.4	2.5	3.3
40	UCT208D1	19	18	83	49	29	83	16	102	114	144	33	49	56	88	49.2	19	3	69	144	90	UC208D1	T208D1	Z(ZM)-UCT208D1	C(CM)-UCT208D1	2.4	2.5	3.1
35	UCT207D1	16	15	64	37	22	64	12	89	102	129	30	37	51	78	42.9	17.5	3	60	129	80	UC207D1	T207D1	Z(ZM)-UCT207D1	C(CM)-UCT207D1	1.6	1.7	2.1
30	UCT206D1	16	12	56	37	22	57	12	89	102	113	28	37	43	70	38.1	15.9	2	53	113.5	75	UC206D1	T206D1	Z(ZM)-UCT206D1	C(CM)-UCT206D1	1.3	1.3	1.7
25	UCT205D1	16	12	51	32	19	51	12	76	89	97	24	32	35	62	34.1	14.3	2	48	100.5	70	UC205D1	T205D1	Z(ZM)-UCT205D1	C(CM)-UCT205D1	0.8	0.9	1.1
20	UCT204D1	16	12	51	32	19	51	12	76	89	94	21	32	33	61	31	12.7	2	45	97	62	UC204D1	T204D1	Z(ZM)-UCT204D1	C(CM)-UCT204D1	0.6	0.8	1
17	UCT203D1	16	12	51	32	19	51	12	76	89	94	21	32	33	61	31	12.7	2	45	97	62	UC203D1	T204D1	Z(ZM)-UCT203D1	C(CM)-UCT203D1	0.6	0.8	1
15	UCT202D1	16	12	51	32	19	51	12	76	89	94	21	32	33	61	31	12.7	2	45	97	62	UC202D1	T204D1	Z(ZM)-UCT202D1	C(CM)-UCT202D1	0.6	0.8	1.1
12	UCT201D1	16	12	51	32	19	51	12	76	89	94	21	32	33	61	31	12.7	2	45	97	62	UC201D1	T204D1	Z(ZM)-UCT201D1	C(CM)-UCT201D1	0.6	0.8	1.1

Total10items
