The UKFL2 bearing unit with a diamond-shaped housing and set-screw locking mechanism features a diamond-shaped mounting base combined with a set-screw locking structure, ensuring secure fastening and easy installation and removal. It offers self-aligning capabilities, excellent sealing protection, smooth operation and high wear resistance, and is suitable for a wide range of gearboxes, light industrial machinery, agricultural equipment and general-purpose transmission machinery. It is ideal for standard shaft-end support applications.

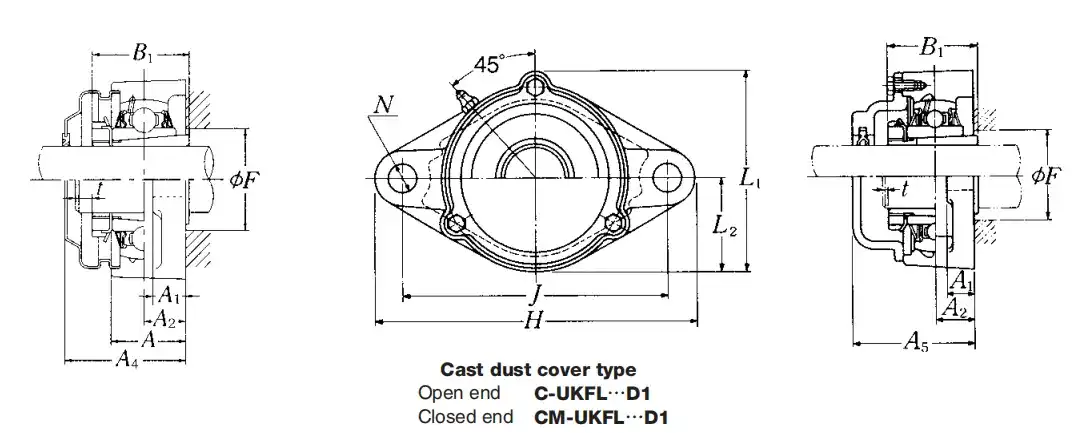

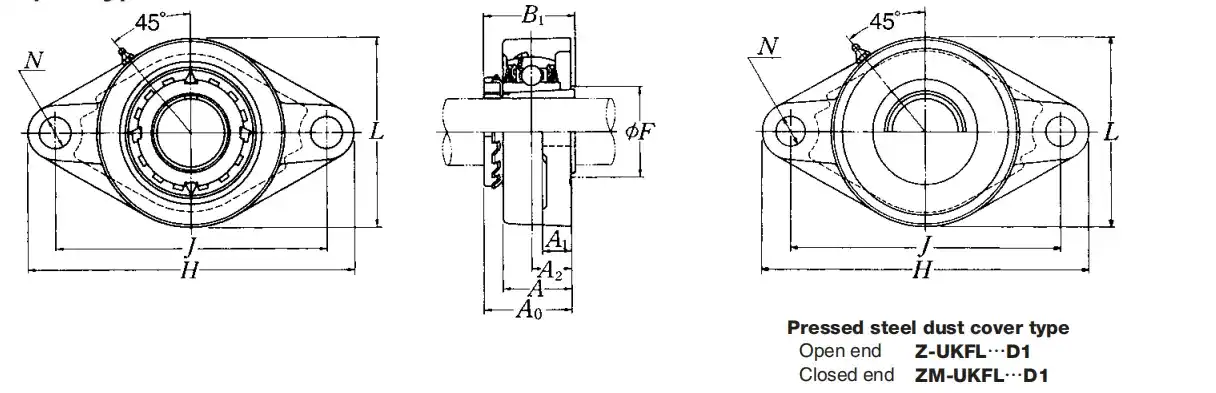

| Shaft diameter.（mm） | Unit Number | Nominal Dimensions（mm） | Bolt Dimensions（mm） | Bearing Number | Housing Number | Pressed Steel Dust Cover Type Unit Number | Cast Iron Dust Cover Type Unit Number | Unit Weight（kg） | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| h | J | A2 | A1 | A | N | L | A0 | B1 | F min | T | A4 | A5 | L1 | L2 | UKFL | Z(ZM) | C(CM) | |||||||
| 80 | UKFL218D1;H2318X | 320 | 265 | 40 | 24 | 68 | 25 | 205 | 81.5 | 86 | 102 | 5 | - | 122 | 205 | 102 | M22 | UK218D1;H2318X | FL218D1 | Z(ZM)-UKFL218D1;H2318X | C(CM)-UKFL218D1;H2318X | 11 | - | 13 |
| 75 | UKFL217D1;H2317X | 305 | 248 | 36 | 24 | 63 | 25 | 190 | 77 | 82 | 95 | 5 | - | 114 | 192 | 95 | M22 | UK217D1;H2317X | FL217D1 | Z(ZM)-UKFL217D1;H2317X | C(CM)-UKFL217D1;H2317X | 9.2 | - | 11 |
| 70 | UKFL216D1;H2316X | 290 | 233 | 34 | 22 | 58 | 25 | 180 | 73.5 | 78 | 90 | 4 | - | 106 | 183 | 90 | M22 | UK216D1;H2316X | FL216D1 | Z(ZM)-UKFL216D1;H2316X | C(CM)-UKFL216D1;H2316X | 7.9 | - | 9.3 |
| 65 | UKFL215D1;H2315X | 275 | 225 | 34 | 22 | 56 | 23 | 165 | 71 | 73 | 84 | 4 | - | 102 | 169 | 82 | M20 | UK215D1;H2315X | FL215D1 | Z(ZM)-UKFL215D1;H2315X | C(CM)-UKFL215D1;H2315X | 6.2 | - | 7.6 |
| 60 | UKFL213D1;H2313X | 258 | 210 | 30 | 22 | 50 | 23 | 155 | 64 | 65 | 74 | 4 | 76 | 90 | 157 | 78 | M20 | UK213D1;H2313X | FL213D1 | Z(ZM)-UKFL213D1;H2313X | C(CM)-UKFL213D1;H2313X | 5 | 5.4 | 6 |
| 55 | UKFL212D1;H2312X | 250 | 202 | 29 | 18 | 48 | 23 | 140 | 61 | 62 | 69 | 4 | 74 | 86 | 144 | 70 | M20 | UK212D1;H2312X | FL212D1 | Z(ZM)-UKFL212D1;H2312X | C(CM)-UKFL212D1;H2312X | 3.9 | 4.2 | 4.7 |
| 50 | UKFL211D1;H2311X | 224 | 184 | 25 | 18 | 43 | 19 | 130 | 54.5 | 59 | 64 | 4 | 64 | 75 | 133 | 65 | M16 | UK211D1;H2311X | FL211D1 | Z(ZM)-UKFL211D1;H2311X | C(CM)-UKFL211D1;H2311X | 3.1 | 3.4 | 3.7 |
| 45 | UKFL210D1;H2310X | 197 | 157 | 22 | 16 | 40 | 19 | 115 | 50 | 55 | 57 | 3 | 60 | 72 | 120 | 58 | M16 | UK210D1;H2310X | FL210D1 | Z(ZM)-UKFL210D1;H2310X | C(CM)-UKFL210D1;H2310X | 2.2 | 2.4 | 2.9 |
| 40 | UKFL209D1;H2309X | 188 | 148 | 22 | 16 | 38 | 19 | 108 | 48.5 | 50 | 52 | 3 | 57 | 70 | 113 | 54 | M16 | UK209D1;H2309X | FL209D1 | Z(ZM)-UKFL209D1;H2309X | C(CM)-UKFL209D1;H2309X | 2 | 2.1 | 2.5 |
| 35 | UKFL208D1;H2308X | 175 | 144 | 21 | 15 | 36 | 16 | 100 | 46.5 | 46 | 46 | 3 | 56 | 66 | 106 | 50 | M14 | UK208D1;H2308X | FL208D1 | Z(ZM)-UKFL208D1;H2308X | C(CM)-UKFL208D1;H2308X | 1.6 | 1.7 | 2.1 |
| 30 | UKFL207D1;H2307X | 161 | 130 | 19 | 15 | 34 | 16 | 90 | 42.5 | 43 | 40 | 3 | 49 | 59 | 97 | 45 | M14 | UK207D1;H2307X | FL207D1 | Z(ZM)-UKFL207D1;H2307X | C(CM)-UKFL207D1;H2307X | 1.3 | 1.3 | 1.6 |
| 25 | UKFL206D1;H2306X | 148 | 117 | 18 | 13 | 31 | 16 | 80 | 39 | 38 | 36 | 2 | 45 | 56 | 85 | 40 | M14 | UK206D1;H2306X | FL206D1 | Z(ZM)-UKFL206D1;H2306X | C(CM)-UKFL206D1;H2306X | 0.9 | 1 | 1.2 |
| 20 | UKFL205D1;H2305X | 130 | 99 | 16 | 13 | 27 | 16 | 68 | 35.5 | 35 | 30 | 2 | 40 | 51 | 74 | 34 | M14 | UK205D1;H2305X | FL205D1 | Z(ZM)-UKFL205D1;H2305X | C(CM)-UKFL205D1;H2305X | 0.6 | 0.7 | 0.8 |
