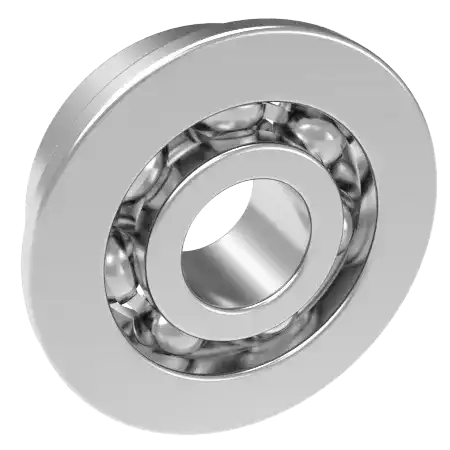

Metric series bore 1-4mm

Metric series bore 1-4mm

Metric series

Metric series bore 1-4mm

Back to list

Dimensions（mm)						Rated load(N)		Rated load{kgf}		Rated speed (min)^-1		Bearing Designation				Install Dimensions(mm)						Weight(g)(reference)
d	D	B	B₁	γ(Minimum)	γ₁(Minimum)	C_r	C_or	C_r	C_or	Grease lubrication ZZ	Oil lubrication Z	Open-type	Dust-proof cap type	Sealed	Sealed	d_a（Minimum）	d_b(Maximum）	d_a(Maximum）	D_b(Minimum)	γ_a（Maximum）	γ_b(Maximum）	Open-type	Dust-proof cap type
4	16	5	5	0.3	0.3	1730	670	177	68	36000	43000	634	634ZZ1	—	—	6	7.5	14	13.8	0.3	0.3	5.24	5.21
4	13	5	5	0.2	0.2	1300	485	133	49	40000	48000	624	624ZZ	—	—	5.6	6	11.4	11.3	0.2	0.2	3.03	3.04
4	12	4	4	0.2	0.2	960	345	98	35	48000	56000	604	604ZZ	—	—	5.6	5.6	10.4	9.9	0.2	0.2	2.25	2.29
4	11	4	4	0.15	0.15	960	345	98	35	48000	56000	694	694ZZ	—	—	5.2	5.6	9.8	9.9	0.15	0.15	1.7	1.75
4	10	3	4	0.2	0.15	710	270	73	28	50000	60000	MR104B	MR104BZZ	—	—	5.6	5.9	8.4	8.8	0.2	0.15	1.04	1.42
4	9	2.5	4	-0.15	-0.15	640	225	65	23	53000	63000	684A	684AZZ	—	—	4.8	5.2	8.2	8.1	0.1	0.1	0.63	1.01
4	8	2	3	0.15	0.1	395	139	40	14	56000	67000	MR84	MR84ZZ	—	—	5.2	5	6.8	7.4	0.15	0.1	0.36	0.56
4	7	-	2.5	—	0.1	255	107	26	11	60000	71000	MR74ZZ	MR74ZZ	—	—	—	4.8	—	6.3	—	0.1	—	0.29
4	7	2	-	0.1	—	310	115	32	12	60000	67000	MR74	—	—	—	4.8	—	6.2	—	0.1	—	0.22	—
3	13	5	5	0.2	0.2	1300	485	133	49	40000	48000	633	633ZZ	—	—	4.6	6	11.4	11.3	0.2	0.2	3.38	3.33
3	10	4	4	0.15	0.15	630	218	64	22	50000	60000	623	623ZZ	—	—	4.2	4.3	8.8	8	0.15	0.15	1.65	1.66
3	9	3	5	0.15	0.15	570	187	58	19	56000	67000	603	603ZZ	—	—	4.2	4.3	7.8	7.9	0.15	0.15	0.87	1.45
3	9	2.5	4	0.2	0.15	570	187	58	19	56000	67000	MR93	MR93ZZ	—	—	4.6	4.3	7.4	7.9	0.2	0.15	0.73	1.18
3	8	3	4	0.15	0.15	560	179	57	18	60000	67000	693	693ZZ	—	—	4.2	4.3	6.8	7.3	0.15	0.15	0.61	0.83
3	8	2.5	-	0.15	—	560	179	57	18	60000	67000	MR83	—	—	—	4.2	—	6.8	—	0.15	—	0.54	—
3	7	2	3	0.1	0.1	390	130	40	13	63000	75000	683A	683AZZ	—	—	3.8	4	6.2	6.4	0.1	0.1	0.32	0.45
3	6	2	2.5	0.1	0.1	208	74	21	7.5	71000	80000	MR63	MR63ZZ	—	—	3.8	3.7	5.2	5.4	0.1	0.1	0.2	0.27
2.5	8	2.8	4	0.15	0.15	550	175	56	18	60000	71000	602X	602XZZ	—	—	3.7	4.1	6.8	7	0.15	0.15	0.63	0.83
2.5	8	2.5	-	0.2	—	560	179	57	18	60000	67000	MR82X	—	—	—	4.1	—	6.4	—	0.2	—	0.56	—
2.5	7	2.5	3.5	0.15	0.15	385	127	39	13	63000	75000	692X	692XZZ	—	—	3.7	3.8	5.8	6.2	0.15	0.15	0.41	0.55
