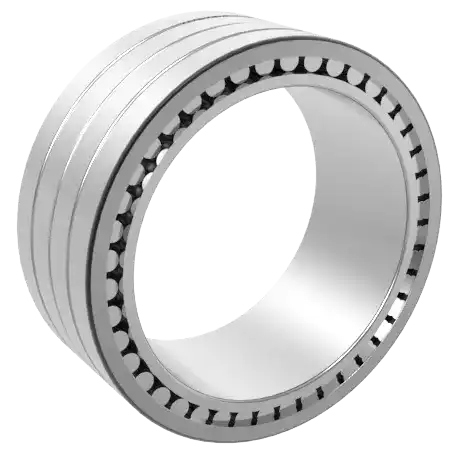

Four-row cylindrical roller bearing (RV type) bore 100-1348.95mm

Dimensions（mm)							Rated load(KN)		Bearing Designation	Legend Code	Install Dimensions(mm)				Weight(kg)
d	D	B	C₂	F_W	γ₁(Minimum)	γ₂(Minimum)	C_r	C_or	Bearing Designation	Legend Code	d_a	d_a	γ_a (Maximum)	γ_b (Maximum)	(reference)
1348.95	1745	1010	1000	1466	11.4	7.5	42500	134000	1348RV1711	SP	1423	1678	9.5	6	6240
1300	1655	890	880	1391	7.5	7.5	34000	110500	1300RV1612	SP	1359	1590	6	6	4710
1270	1602	850	850	1350	7.5	7.5	32000	103000	1270RV1612	SP	1329	1538	6	6	4130
1120	1580	1150	1150	1255	9.5	9.5	43500	134500	1120RV1511	8	1184	1509	8	8	7400
950	1360	1000	1000	1075	9.5	5	37500	108000	950RV1311	8	1010	1313	8	4	4910
950	1330	950	950	1053	Spec.	9	33500	97000	950RV1314	8	1008	1266	7.5	7.5	4240
920	1280	865	865	1015	7.5	7.5	28000	80000	920RV1211A	8M	972	1223	6	6	3510
900	1280	930	930	1000	7.5	7.5	33000	93000	900RV1217	8	951	1223	6	6	4010
900	1280	930	930	1000	7.5	7.5	32000	89500	900RV1213	8	951	1223	6	6	3990
900	1230	895	870	985	7.7	7.5	25800	76000	900RV1211	8M	951	1174	6	6	3200
900	1220	840	840	989	7.5	4	26800	80000	900RV1212	8	951	1179	6	3	2950
900	1220	810	800	981	7.5	6	25900	74500	900RV1216	8	951	1170	6	5	2790
880	1230	850	850	970	7.5	7.5	29100	81000	880RV1211	8	931	1174	6	6	3240
870	1145	705	685	940	9.5	6	20500	61000	870RV1111	8	929	1096	8	5	1970
865	1180	750	750	945.3	Spec.	7.5	23800	67000	865RV1111	8	915	1125	6	6	2480
860	1160	735	710	940	7.5	4	20400	60000	860RV1133	9	910	1121	6	3	2200
860	1130	670	670	934	6	6	18400	56500	860RV1132	9	904	1081	5	5	1780
850	1850	875	850	940	7.5	7.5	24600	72000	850RV1112A	8M	900	1125	6	6	2880
850	1850	850	850	940	7.5	7.5	24600	72000	850RV1111	8M	900	1125	6	6	2850
850	1850	650	650	945	7.5	7.5	19600	53000	850RV1133	9	900	1125	6	6	2260
