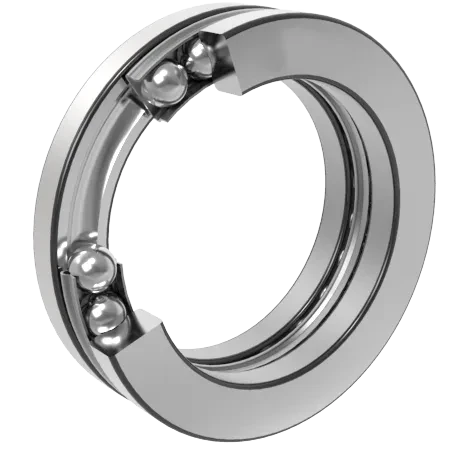

Single-direction thrust ball bearing bore 380-630mm

Dimensions（mm)				Rated load(KN)		Rated load{kgf}		Bearing Designation	Dimensions（mm)		About Install Dimensions			Weight(kg)
d	D	T	γ (Minimum)	C_a	C_0a	C_a	C_0a	Bearing Designation	d₁	d₁	D_a (Minimum）	d_a (Maximum）	γ_a (Maximum)	(reference)
630	850	175	6	1400	10000	143000	1020000	512/630X	845	635	759	721	5	299
630	750	95	3	685	4600	69500	470000	511/630X	745	634	700	680	2.5	83
600	800	160	5	1170	7800	120000	795000	512/601	800	605	717	685	4	241
600	710	85	3	675	4400	68500	450000	511/600X	705	605	665	645	2.5	63.3
560	750	150	5	1200	7800	122000	795000	512/560	750	565	672	640	4	200
560	670	85	3	655	4100	66500	415000	511/560	685	564	625	605	2.5	59.6
530	710	140	5	1010	6200	103000	636000	512/530	710	536	637	605	4	165
530	640	85	3	640	3900	65500	395000	511/530X	635	535	597	575	2.5	56.1
480	650	135	5	890	5250	90500	535000	51396	650	485	582	550	4	137
480	580	80	2.1	530	3100	54000	315000	51196X	575	484	538	522	2	43.7
460	710	195	6	1200	7150	123000	730000	51392	710	465	606	566	5	291
460	620	130	5	880	5050	89500	490000	51292	620	465	567	525	4	119
460	560	80	2.1	520	2930	53000	299000	51192X	555	464	518	502	2	42
440	680	180	6	1220	7150	124000	655000	51388X	675	445	479	541	5	269
440	600	130	5	865	4850	88000	470000	51288	600	445	537	505	4	115
440	540	65	2	515	2850	53000	215000	51188X	535	444	498	428	2	40.5
420	650	175	6	1150	6450	118000	655000	51384	650	405	556	516	5	232
420	580	112	4	850	4650	86500	390000	51284	580	405	517	486	3	109
420	500	65	2	400	2110	41000	205000	51184X	495	404	467	453	2	24.4
400	620	175	6	1170	6450	119000	620000	51376X	615	385	529	491	5	207
