The UCC3 features a ring-mounted spherical roller bearing. Its oversized ring housing provides enhanced load-bearing capacity and a robust structure that resists deformation. Combined with a precision spherical roller bearing, it offers excellent self-aligning capability. The sealing system effectively blocks out dust and moisture, ensuring smooth operation and fatigue resistance. It is suitable for use as a slewing support in medium-sized industrial machinery, conveyor systems, heating and ventilation fans, and similar equipment, offering high versatility and a wide range of applications.

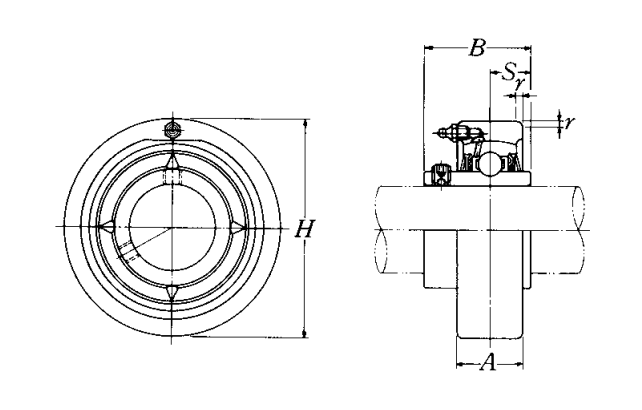

| Shaft diameter.（mm） | Unit Number | Nominal Dimensions（mm） | Bearing Number | Housing Number | Unit Weight（kg） | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| h | A | R | B | S | |||||||
| 140 | UCC328D1 | 360 | 100 | 5 | 145 | 59 | UC328D1 | C328D1 | 50 | ||
| 130 | UCC326D1 | 340 | 100 | 54 | 5 | 135 | UC326D1 | C326D1 | 43 | ||
| 120 | UCC324D1 | 320 | 126 | 51 | 90 | 5 | UC324D1 | C324D1 | 36 | ||
| 110 | UCC322D1 | 300 | 80 | 46 | 5 | 117 | UC322D1 | C322D1 | 29 | ||
| 105 | UCC321D1 | 260 | 75 | 44 | 112 | 4 | UC321D1 | C321D1 | 19 | ||
| 100 | UCC320D1 | 260 | 75 | 42 | 108 | 4 | UC320D1 | C320D1 | 20 | ||
| 95 | UCC319D1 | 240 | 72 | 4 | 103 | 41 | UC319D1 | C319D1 | 16 | ||
| 90 | UCC318D1 | 225 | 66 | 96 | 4 | 40 | UC318D1 | C318D1 | 13 | ||
| 85 | UCC317D1 | 215 | 64 | 4 | 96 | 40 | UC317D1 | C317D1 | 11 | ||
| 80 | UCC316D1 | 200 | 60 | 34 | 4 | 86 | UC316D1 | C316D1 | 9.3 | ||
| 75 | UCC315D1 | 190 | 55 | 4 | 82 | 32 | UC315D1 | C315D1 | 7.9 | ||
| 70 | UCC314D1 | 180 | 52 | 33 | 4 | 78 | UC314D1 | C314D1 | 6.8 | ||
| 65 | UCC313D1 | 170 | 75 | 30 | 50 | 3.5 | UC313D1 | C313D1 | 5.8 | ||
| 60 | UCC312D1 | 160 | 46 | 26 | 3.5 | 71 | UC312D1 | C312D1 | 4.8 | ||
| 55 | UCC311D1 | 150 | 44 | 25 | 66 | 3.5 | UC311D1 | C311D1 | 4 | ||
| 50 | UCC310D1 | 140 | 40 | 22 | 61 | 3.5 | UC310D1 | C310D1 | 3.3 | ||
| 45 | UCC309D1 | 130 | 38 | 3.5 | 57 | 22 | UC309D1 | C309D1 | 2.7 | ||
| 40 | UCC308D1 | 120 | 34 | 52 | 3 | 19 | UC308D1 | C308D1 | 2.1 | ||
| 35 | UCC307D1 | 110 | 32 | 3 | 48 | 19 | UC307D1 | C307D1 | 1.7 | ||
| 30 | UCC306D1 | 100 | 28 | 17 | 2.5 | 43 | UC306D1 | C306D1 | 1.3 | ||
