Single-row and duplex matched bearing bore10~220mm

Single-row and duplex matched bearing bore10~220mm

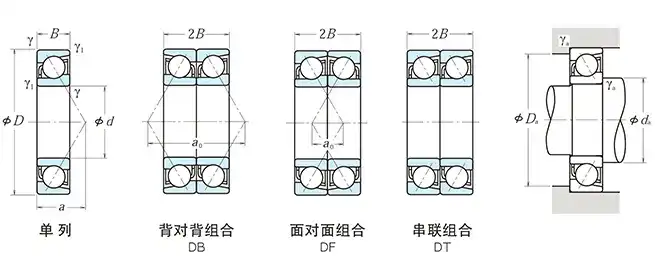

Single-row and duplex matched angular contact ball bearing

Single-row and duplex matched bearing bore10~220mm

Back to list

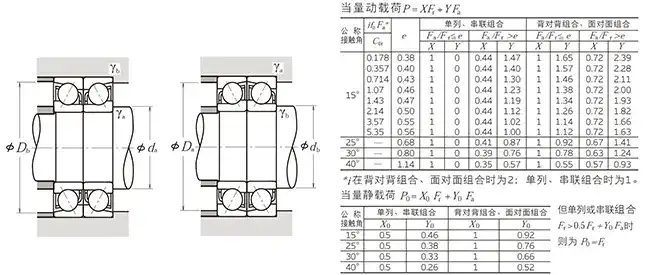

Dimensions（mm)Rated load（Single-column）（KN）Rated load（Single-column）{kgf}Coef.Rated speed (min)-1Point of application(mm)Installation-related Dimensions(mm)Weight(kg)Bearing DesignationRated load( Combination type)（KN）Rated load( Combination type){kgf} Combination Rated Speed（1）（min-1） Combination load point distance（mm）a0 Combination typeInstallation-related Dimensions（mm）
dDBγ(Minimum)γ1(Minimum)CrCorCrCorf0Grease lubricationOil lubricationAda（Minimum）da(Maximum）γa（Maximum）(reference)Single-columnDB CombinationDF CombinationDT CombinationCrCorCrCorGrease lubricationOil lubricationBack CombinationFront CombinationDb(Minimum)db(Maximum）γb(Maximum
220 300 38 2.1 1.1 172 233 17500 23700 — — — 94.1 242 282 2 7.6 7944A DB DF — 279 465 28500 47500 — — 188.1 112.1 — 287 1
220 270 24 1.5 1 75.5 120 7700 12300 — — — 114.8 239 255 1.5 2.82 7844B DB DF — 122 241 12500 24600 — — 229.6 181.6 — 258 1
220 270 24 1.5 1 85 135 8650 13800 — — — 82.7 239 255 1.5 2.84 7844A DB DF — 138 270 14100 27500 — — 165.5 117.5 — 258 1
200 420 80 5 2 430 600 44000 61500 — — — 170.1 231 390 4 52.4 7340BA DB DF — 700 1200 74500 123000 — — 340.1 180.1 219 401 2
200 420 80 5 2 475 660 48500 67000 — — — 128.8 231 390 4 51.5 7340AA DB DF — 770 1320 78500 134000 — — 257.6 97.6 219 401 1
200 310 51 2.1 1.1 215 280 21900 28600 — — — 132.5 221 292 2 14.1 7040B DB DF — 350 560 35500 57000 — — 264.9 162.9 — 296 1
200 280 38 2.1 1.1 152 199 15500 20300 — — — 119.7 221 262 2 6.88 7940BA DB DF — 247 400 25200 40500 — — 239.4 163.4 216 267 1
200 280 38 2.1 1.1 152 199 15500 20300 — — — 119.7 221 262 2 6.99 7940B DB DF — 247 400 25200 40500 — — 239.4 163.4 — 267 1
200 280 38 2.1 1.1 171 222 17400 22600 — — — 88.3 221 262 2 6.99 7940AA DB DF — 278 445 28300 45500 — — 176.6 100.6 216 267 1
200 280 38 2.1 1.1 171 222 17400 22600 — — — 88.3 221 262 2 7 7940A DB DF — 278 445 28300 45500 — — 176.6 100.6 — 267 1
200 250 24 1.5 1.1 73 110 7450 11300 — — — 106.6 218 236 1.5 2.59 7840B DB DF — 119 221 12100 22500 — — 212.8 164.8 — 239 1
200 250 24 1.5 1 82.5 124 8400 12600 — — — 77 218 236 1.5 2.61 7840A DB DF — 134 247 13600 25200 — — 153.9 105.9 — 239 1
190 400 78 5 2 450 600 46000 61000 — — — 124.2 221 370 4 46.1 7338AA DB DF — 730 1200 74500 122000 — — 248.3 92.3 208 382 2
190 340 55 4 1.5 201 253 20400 25800 — — — 123.7 211 272 2 11.1 7038B DB DF — 325 505 33000 51500 — — 247.4 155.4 — 277 1
190 260 33 2 1 118 157 12100 16000 — — — 110.9 208 245 2 5.07 7938B DB DF — 192 315 19600 32000 — — 221.8 155.8 — 248 1
190 260 33 2 1 133 175 13500 17800 — — — 81.5 208 245 2 5.02 7938A DB DF — 216 350 22000 35500 — — 162.9 96.9 — 248 1
190 240 24 1.5 1 72.5 107 7400 10900 — — — 102.2 207 226 1.5 2.47 7838B DB DF — 118 214 12000 21800 — — 204.4 156.4 — 229 1
190 240 24 1.5 1 82 120 8350 12200 — — — 74.1 207 226 1.5 2.47 7838A DB DF — 133 240 13600 24400 — — 148.1 100.1 — 229 1
180 380 75 4 1.5 375 490 38000 50000 — — — 155 206 354 3 41.3 7336BA DB DF — 605 975 62000 99500 — — 309.9 159.9 197 363 1.5
180 320 52 4 1.5 305 385 31000 39000 — — — 98.2 206 295 3 18.1 7236AA DB DF — 495 770 50500 78500 — — 196.3 92.3 197 304 1.5
